Twin oscillator Bass Generator

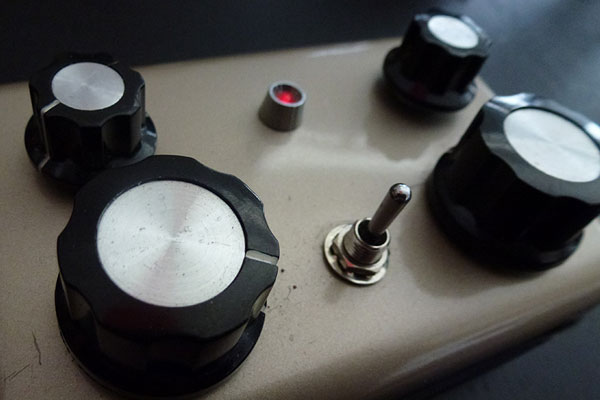

BassGenerator01

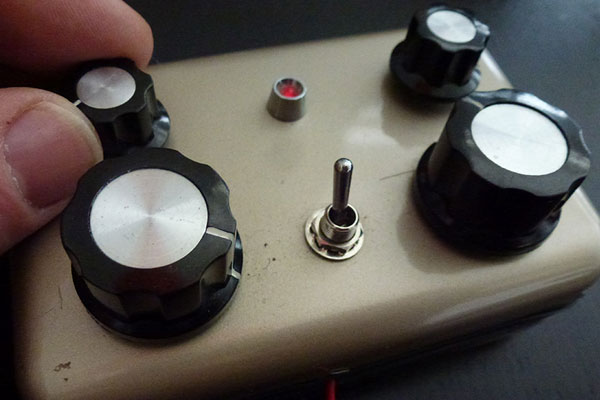

BassGenerator02

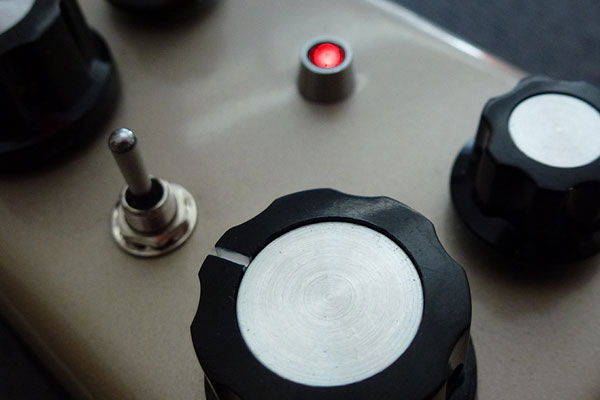

BassGenerator04

Bass generator : Two pairs of square wave oscillators, adjustable pitch
a bass drone synthesizer that uses two pairs of heterodyning oscillators to generate the output. .

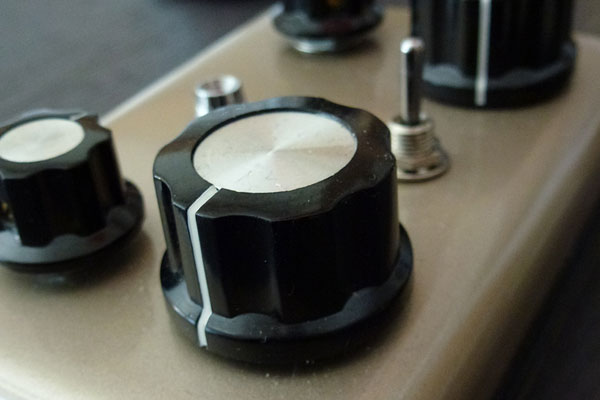

BassGenerator03

three way switch chooses between left/ right or both pairs of oscillators

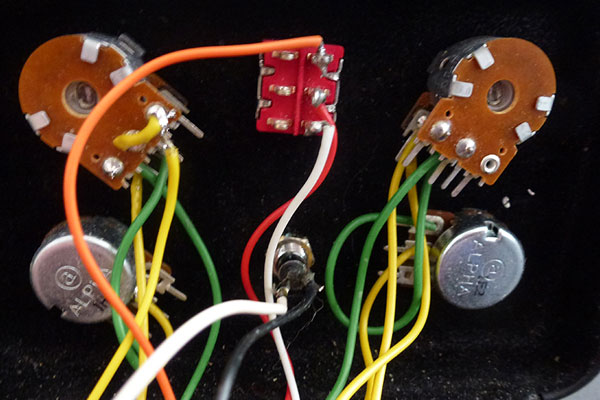

BassGenerator06

large stereo pot controls pitch of osc pair, small pot controls pitch seperation of each pair

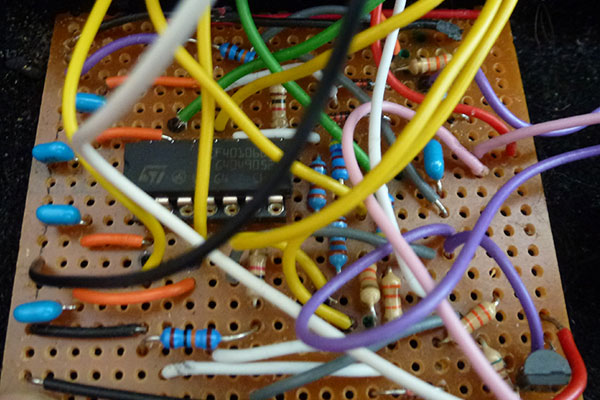

BassGenerator05

just one chip inside. 40106
